Large Digit Repeater Displays

As the UK’s leading supplier of farm weighbridges, we offer an unrivalled range of surface-mount and pit designs. Their modular design ensures there is always a weighbridge system for your application.

Large Digit Repeater Displays

Our trade-approved, large digit displays are ideal for a wide range of agricultural weighing applications, providing easy-to-read weight information at distances up to 40 metres away from the scale.

These versatile instruments include:

  • Repeater displays that connect directly to the main weight indicator (RD52 and RD100)
  • Remotely operated display (D520)
  • Electronic messaging boards

All displays can be used in conjunction with our range of standard weight indicators and terminals, in both weighbridge and weighing scale applications.

Please contact us for further information on Parkerfarm’s large digit displays, our friendly team of experts are happy to offer advice.

Large Digit Repeater Displays Range

Repeater Displays

The RD52 and RD100 models are ideal for weighbridge and axle weigher applications. They are also useful in pack-houses and warehouses, for example, where forklift trucks are used to move pallets for weighing.

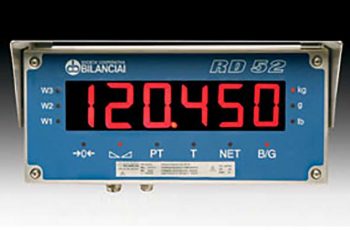

RD52

  • 60 mm high brightness LED visible up to 30 metres
  • RS232 or RS422 serial link for direct connection to the weight indicator
  • Stainless steel housing with a protective weather shield and mounting bracket

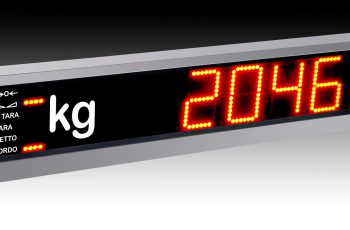

RD100

  • 100 mm high brightness LED 6 digit display visible up to 40 metres
  • RS232, RS422 or RS485 serial link for direct connection to the weight indicator
  • Stainless steel housing with a protective weather shield and mounting bracket

D520 Remote Display

The D520 is a standalone, large digit weight indicator ideally suited to weighbridge and silo weighing applications. The optional remote control capability, utilised in our VRS remote weighing system, is invaluable for installations where the indicator is located out of normal reach.

  • Trade-approved to 6000 d
  • Stainless enclosure with weather shield and water-proof front membrane keypad
  • RS232 and RS 232/485 outputs for connection to PCs and printers
  • Optional radio control module for remote operation
  • Zero and tare buttons

Downloads:

D520 Datasheet
