Large Digit Repeater Displays for Weighbridges
As one of the UK’s leading suppliers of farm farm weighing solutions, Parkerfarm offers an extensive range of Large Digit Displays to connect with your weight terminal, from a 60mm to 100mm LED high resolution displays to solutions with integral LED traffic lights , whatever your requirement or budget we have the right solution for you.

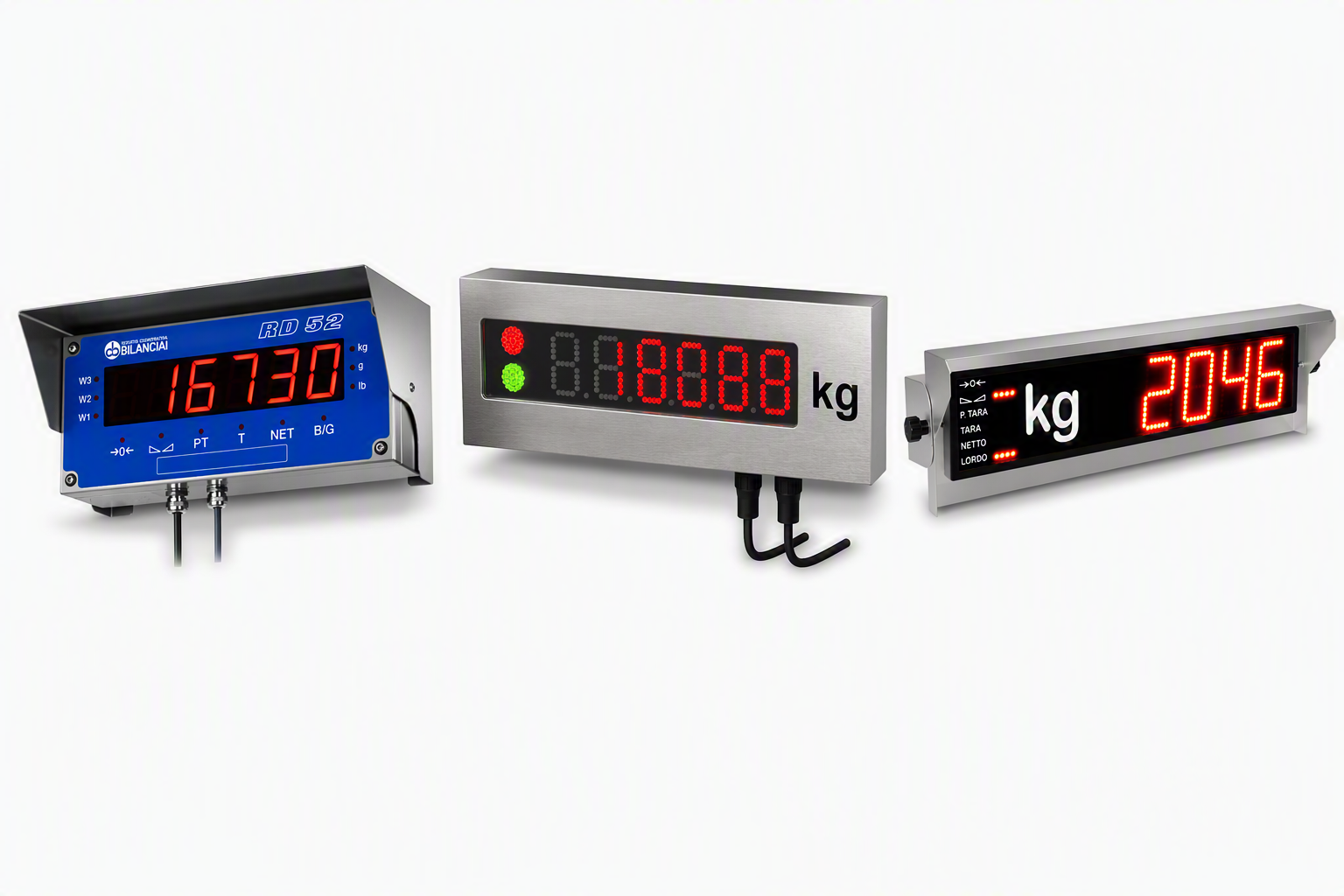

Large Digit Repeater Displays
Our trade-approved, large-digit displays are ideal for a wide range of agricultural weighing applications, providing easy-to-read weight information at distances up to 40 metres away from the scale.
These versatile instruments include:
- Repeater displays that connect directly to the main weight indicator
- Positioned outside to provide a visual weight for drivers and operators
- RD52HL – 60mm high digits legible from 30m
- RD75TL – 75mm high digits legible from 35m with integral traffic light
- RD100 – 100mm high digits legible from 40m
All displays can be used in conjunction with our range of standard weight indicators and terminals, in both weighbridge and weighing scale applications.
If you need help selecting the right large outside repeater display for your operation, please get in touch with our team for expert advice and guidance.

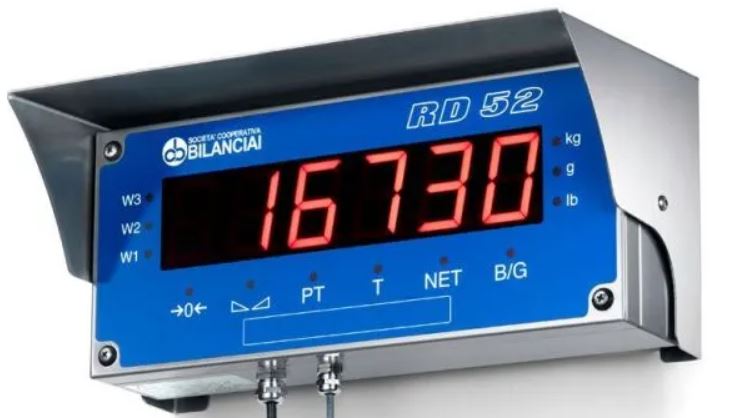

RD52HL
is ideal for use with scales, weighbridges, and axle weighers. Positioned alongside the weighing platform or weighbridge, it allows the driver or operator to clearly view the live weight display.
- 60 mm high brightness LED visible up to 30 metres
- RS232 or RS422 serial link for direct connection to the weight indicator
- IP65 Stainless steel housing with a protective weather shield and mounting bracket
- Trade Approved (can be used as a legal weight)
RD75TL
is ideal for scales, weighbridges, and axle weighers. Installed next to the weighing platform or weighbridge, it provides a clear live weight display and features integral traffic lights to indicate when the weighing operation is complete, helping to improve traffic flow around your farm.
- 75mm high brightness LED visible up to 35 metres
- Integrated traffic light controlled by the same data cable
- RS232 and RS 232/485 outputs for connection to the weight indicator
- IP67 anodized aluminum structure
- Automatic brightness control function, the display adapts based on ambient light, avoiding reflections and improving reading in all conditions
- Wide 120° viewing angle

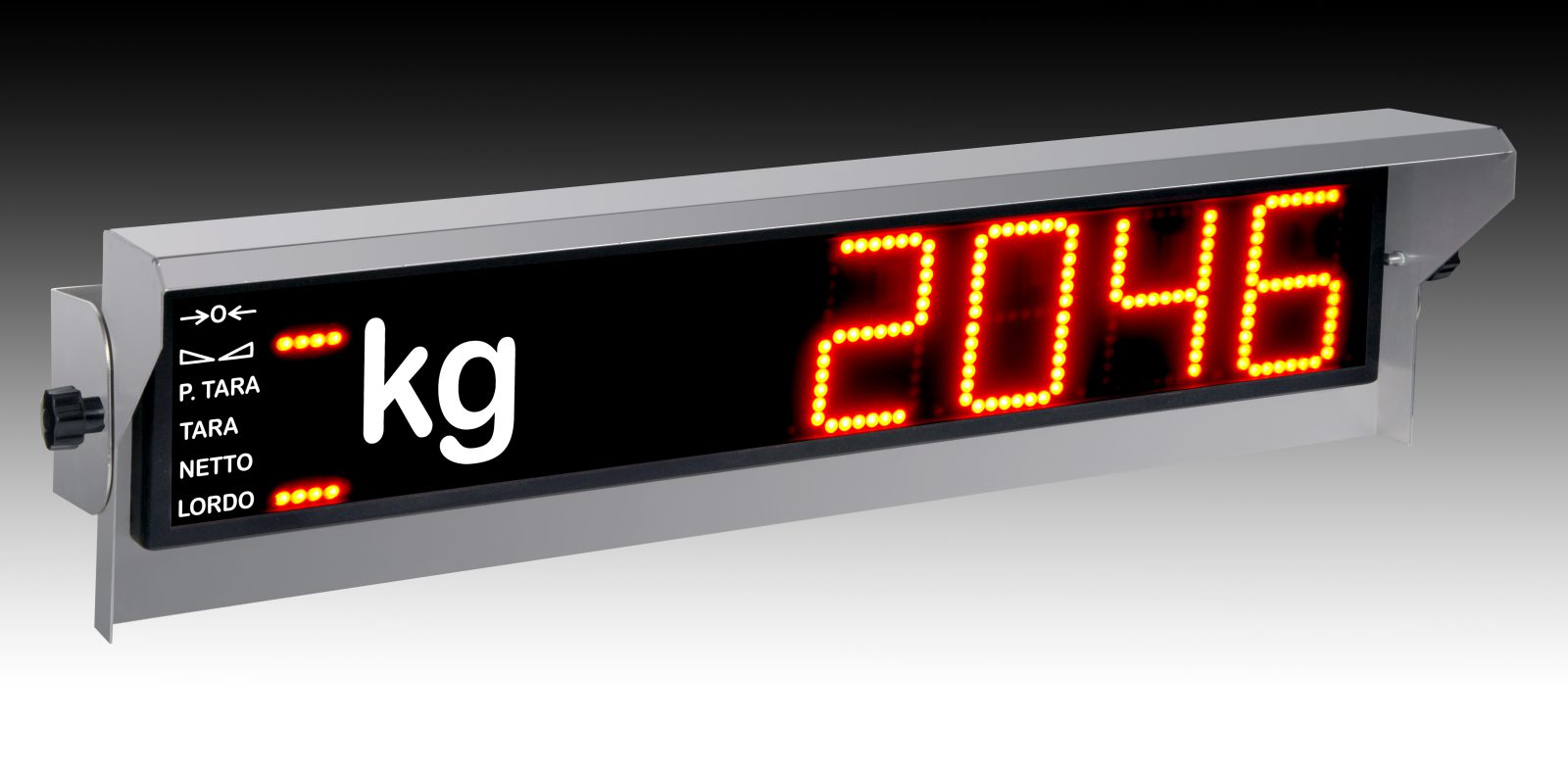

RD100HL
is ideal for scales, weighbridges, and axle weighers. Positioned beside the weighing platform or weighbridge, it enables the driver or operator to view the live weight clearly from up to 40 metres away, providing a clear indication of the load.
- Super-bright LED display visible from a long distance of 40m
- IP65 rated Ideal for outdoor installations
- Stainless steel enclosure with weather cowl
- Compact and lightweight for easy mounting
- Automatic brightness control
Related Electronics Pages
Frequently Asked Questions
Answers to common questions about Large Digital Repeater Displays from Parkerfarm.
Large Digital Repeater Displays helps operators view, control or communicate weight information from a scale or weighbridge system.
Yes, where compatible. Parkerfarm can review the existing load cells, cabling and equipment before recommending an upgrade.
Yes. Large digital repeater displays and indicators can be positioned to give drivers or operators clearer visibility of weighing information.
Yes. Parkerfarm can provide advice, installation support and aftercare for suitable weighing electronics.
